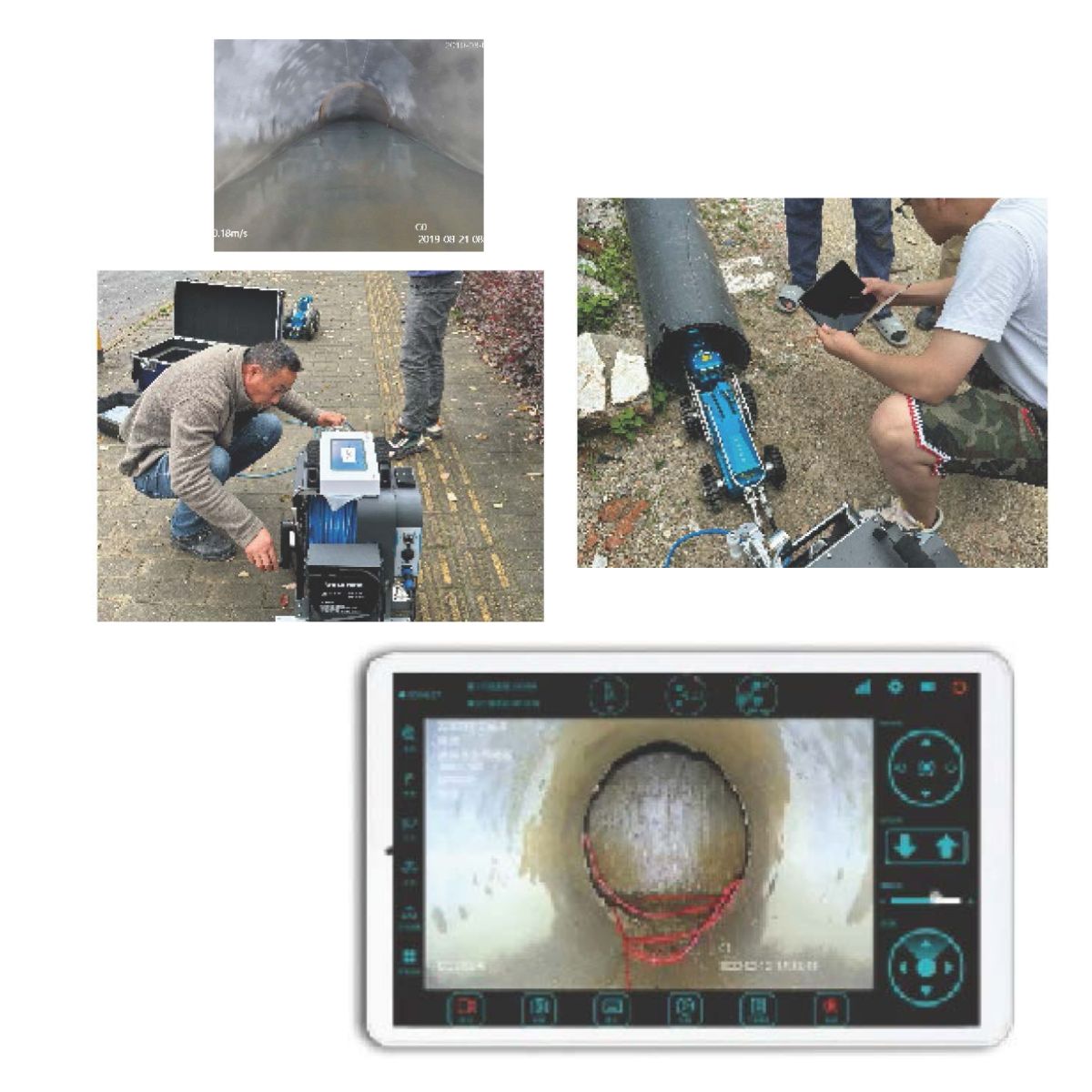

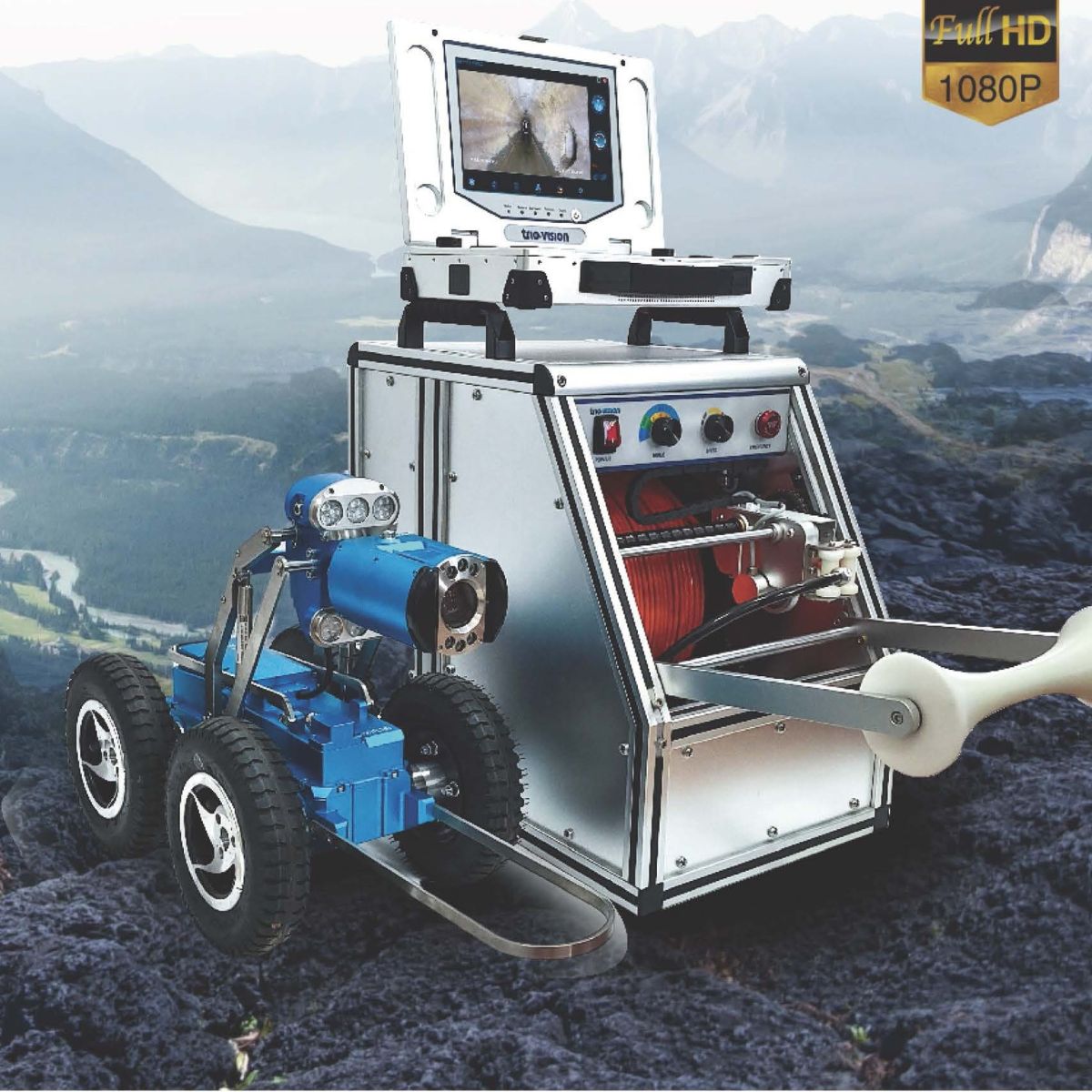

The TVS-2000HD is an advanced television pipeline inspection system designed to deliver high performance and reliability for monitoring and diagnosing sewer and industrial networks. An evolution of the TVS-2000 model, this crawler maintains the Trio-Vision philosophy of technology, practicality, and durability.
Thanks to Full HD video quality and modular configuration, it ensures detailed, operational analysis and is suitable for even the most challenging environments.

Main features

Full HD 1080P video quality
The system provides clear, detailed images, essential for identifying cracks, deformations, and structural anomalies within pipelines.

Advanced operational performance

  • Video transmission and commands without delays and without signal loss.

  • Self-diagnostic functions with crawler and camera status display.

  • Both wired and wireless operating modes.

  • Battery built into the winder with a battery life of more than 8 hours.

Robust and portable structure

  • Designed for maximum durability in tough working conditions.

  • Easily transportable thanks to its compact size.

  • Ideal for outdoor use, even in hostile environments.

System components

ZK-300HD Controller

  • 10” high definition LCD screen, readable even in direct sunlight.

  • Windows 10 system with 256GB SSD.

  • Full-layout waterproof keyboard, with simplified operation.

  • Connection ports: VGA, USB, HDMI, Ethernet.

  • Weight: 5.5 kg; dimensions: 405×265×114 mm.

DLPM-150HDE Winder

  • Built-in battery with over 8 hours of battery life.

  • Manual and automatic rewinding with cable layering.

  • Dimensions: 510×400×450 mm; weight: 39 kg.

Crawler ROBOT-300HD

  • Suitable for pipes with diameters from 250 to 1200 mm.

  • High power brushless motors.

  • IP68 waterproof up to 10 meters deep.

  • Climbing ability up to 45°.

  • Weight: 16 kg; dimensions: 732×231×173 mm.

JT-100HD Camera

  • 360° axial rotation and 270° tilt.

  • Integrated LED lighting.

  • 120x zoom (12x optical, 10x digital).

  • Anti-fog and autofocus function.

  • Available with optional laser profiler.

  • Weight: 1.75 kg; dimensions: 188×85×100 mm.

Accessories available

  • 3”, 4”, 6”, 7” and 8” wheel sets.

  • 8” pneumatic wheels.

  • Laser profiler.

  • Cable guides and pulleys.

  • Components for adaptation to different operating conditions.

Taxes included.

Product Features

Main advantages

  • Wide diameter range: from Ø 25 mm up to Ø 2800 mm (full range), with multi-diameter models covering multiple sizes with a single device .
  • High seal with low inflation pressure: the shutter adheres to the tube developing high friction force even at low pressures; in steady state it maintains operating pressures with a safety factor ≥ 1.3 and very high burst pressures .
  • Thermal resistance: operation from -30°C to +70°C .
  • Rugged construction: Technical blends and fabrics for long life and reliability in the field.

Typical applications

  • Maintenance and repairs of water, sewer and industrial pipes
  • Leak tests and inspections
  • Emergency management and temporary isolation of network sections

Options

Version with NBR rubber for resistance to gas, oils, petroleum and derivatives .

  • Inflation accessories, extensions and pressure monitoring systems.

Notes

Choose the model based on the internal diameter of the pipe , the line pressure , and the fluid conditions/temperature . The Ecovysion team is available to help you select the most suitable device.
